| 화소 피치: | 6mm | 조밀도: | 27,777 pixel/m2 |
|---|---|---|---|
| 내각 크기: | 576mm×576mm×90mm | 내각 해결책: | 96×96 |
| IC를 몰기: | MBI5124 | 내각 무게: | 7.5kg |

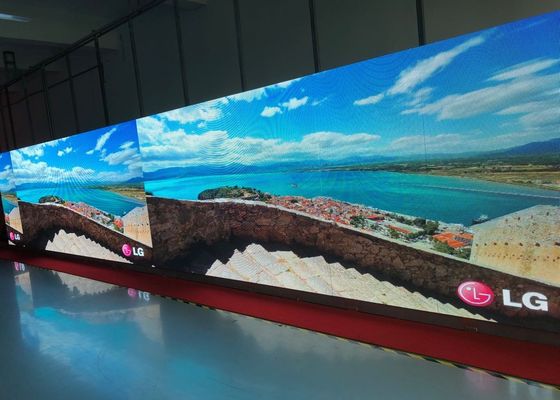

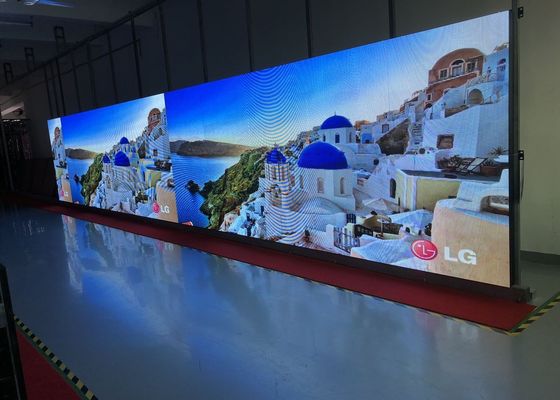

Small Pixel Pitch Indoor P6 Rental Led Display Screen Video Wall Die-Casting Aluminium
Product detail
The display is assembled with lightweight modules, making it easy to transport and install. No skills and special tools are required to install it. The 576x576mm cabinet is assembled using nine 192x192mm modules and aluminum cabinet. Full module is superlight.
The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of P6 Concert LED Screen is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.
The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.
P6 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 6mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3528 White lamp | ||||||||||
| Density | 27,777 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| Module Resolution | 32×32 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜400W | ||||||||||
| Average power: ＜200W | |||||||||||
| Cabinet Weight | 7.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection Level | IP 45 | ||||||||||
Company information
We are a company with a professional display trade team. It is our mission to provide professional and leading control system solutions for the industry, to enhance the competitiveness of products and brands and market value for customers. We hope that within one year, through our team's professional technology, innovative thinking, enterprising spirit, cooperative relationship, win-win attitude, to make the display screen more beautiful, more intelligent, and strive to become a global leader in the field of LED display control.
Shipping
Flight case: has wheels and handles which is for the rental use led display, to make the transportation be very convenient and protect the led display better..if your led display screen system is for the rental use, please choose the flight case for your led display screen
